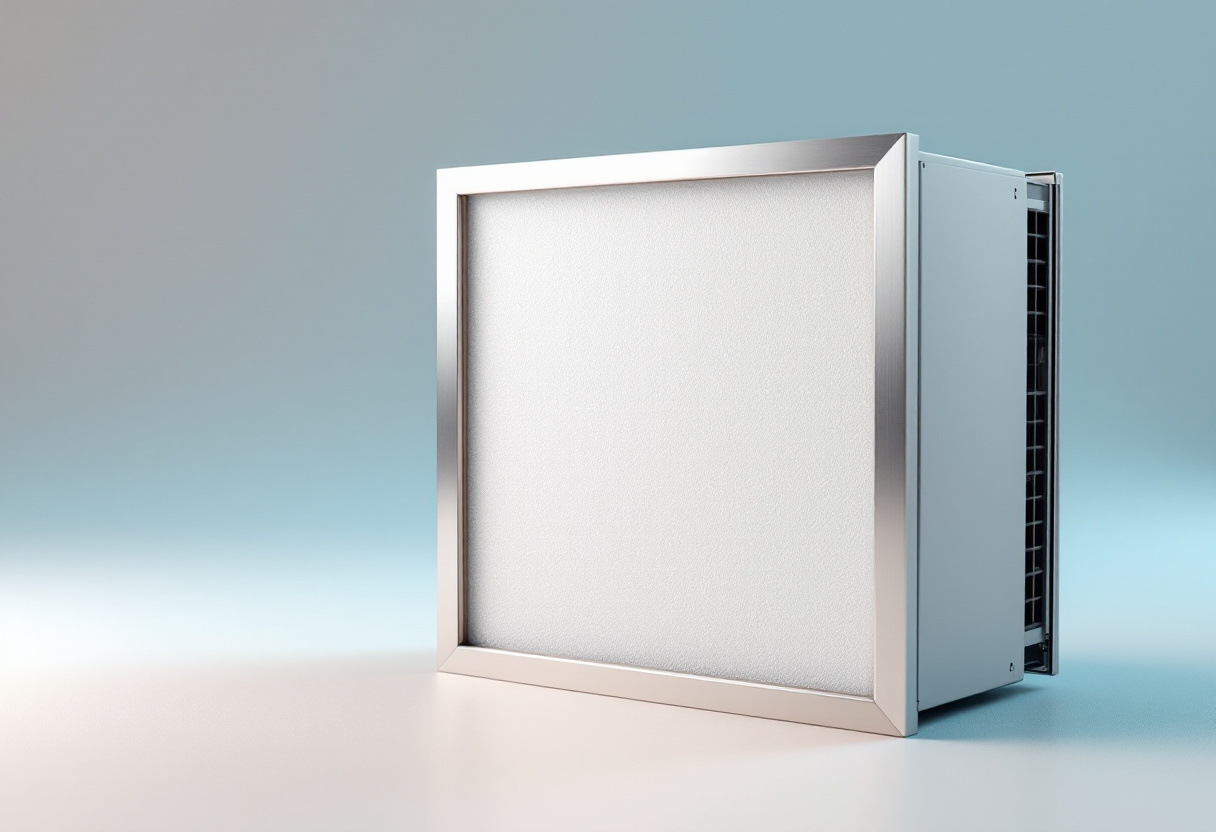

M-Series™ Hybrid 2″
The Ultimate Solution for Hospitals, MERV 14A/16A, ASHRAE 170/241 & CSA Z317.2 compliant, with 54% fan energy savings over standard hospital filter trains.
The M-Series™ Hybrid 2″ is ECOairflow's solution specifically engineered for hospital treatment rooms, operating rooms and critical healthcare spaces. It is available in MERV 14A and MERV 16A configurations and delivers Appendix-J certified performance, power-on and power-off, under ASHRAE 170.1/CSA Z317.2. Its patent-pending single-pad design eliminates the need for separate pre-filters, dramatically reducing pressure drop and the energy penalty that typically accompanies mandatory ASHRAE 170 compliance.
Why the M-Series is the hybrid
A mechanical collector sits in front of the patented EPF core inside a single 2″ cabinet, which is what lets it hold performance power-on and power-off under the Appendix J protocol.
Reserved for further technical or descriptive imagery.
Engineered for Healthcare Safety, ASHRAE 170 & 241
ASHRAE 170 requires high-efficiency filtration (MERV 14A/16A/HEPA) for patient safety. Traditional filter systems impose high pressure drops, often 0.6–1.2 in. w.g., which increase fan energy, shorten filter life, and elevate operating costs. The M-Series resolves this conflict.
- The Pathogen Gap: MERV ratings stop at 0.3 microns, providing no visibility into performance at PM0.1, the size range most associated with airborne infection risk under ASHRAE 241. Viruses, wildfire smoke, and industrial/vehicular ultrafine particles behave more like gases in this range and can defeat traditional body defences.
- The M-Series Advantage: Independent testing shows the Model 2300 M-Series captures 74.73% of PM0.1, compared to 49.19% for HEPA, under controlled test conditions.
- ASHRAE 170/241 Compliant: Provides ASHRAE 170.1 / CSA Z317.2 compliant filtration for all treatment areas. Superior ultrafine capture supports infection risk mitigation strategies under ASHRAE 241.
- Appendix J Certified: All M-Series filters are tested and certified to Appendix J protocols, confirming consistent in-situ performance over their entire lifecycle, clinical safety never wavers.
54% Fan Energy Reduction Over 12 Weeks
An independent 12-week study compared the energy consumption of an ASHRAE 170-compliant 2-bank filter configuration (MERV 8 pre-filter + MERV 14 bag filter system) versus a single bank of Model 2300 M-Series filters in identical air handlers. The result was unambiguous.
- Constant performance: The traditional filter train showed a sharp increase in energy demand as it loaded. The M-Series maintains nearly constant power levels throughout the 12-week cycle.
- Patent-pending single pad design: Combines a MERV 8-equivalent pre-filter with a high-performance MERV 14A or 16A final filter in a single pad, greatly reducing overall pressure drop.
- Eliminates maintenance hurdles: No need for separate pre-filters, reducing labour costs. The robust 2″ aluminum frame is designed for easy media pad replacement.
- Simple conversion: In compliant applications, the M-Series replaces both the pre-filter and final filter, the Stage 2 bag filter array can be eliminated entirely, reducing pressure drop and simplifying maintenance.
Hospital Filtration Standards, ASHRAE 170
The M-Series™ Hybrid 2″ meets ASHRAE 170 filtration requirements across all treatment space types.
| Space Type | ASHRAE 170 Requirement | M-Series Configuration |
|---|---|---|
| Emergency, invasive procedure & higher-risk treatment rooms | MERV 8 / MERV 14A | M-Series MERV 14A (single pad, replaces both stages) |
| Operating rooms & comparable high-acuity procedural spaces | MERV 8 / MERV 16A | M-Series MERV 16A (single pad, replaces both stages) |
| Protective environment rooms | HEPA combinations | M-Series MERV 16A + HEPA (M-Series eliminates energy penalty of MERV 8 pre-filter) |
Even when HEPA must be part of the solution, the M-Series eliminates the "energy penalty" a typical MERV 8/MERV 14 pre-filter adds to the filtration system.
Features
- MERV 14A or MERV 16A (specified at order)
- Appendix-J protocol certified, performance guaranteed power-on and power-off
- Patent-pending hybrid construction, MERV 8-equivalent pre-filter + MERV 14A/16A final filter in a single pad
- ASHRAE 170.1 / CSA Z317.2 compliant for hospital operating rooms and treatment areas
- ASHRAE 241 infection risk mitigation strategy support
- 74.73% PM0.1 capture, independent lab tested vs. 49.19% for HEPA
- Designed for commercial & geothermal HVAC at 500 FPM
- Robust 2″ solid aluminum frame, easy media pad replacement, no separate pre-filter
- Uses the same permanent frame as the commercial Model 2300 2″
- Zero Emissions: Exceeds ASHRAE 170 ozone and formaldehyde emission limits
- ETL · UL2998 Zero Ozone · UL867 · CSA 22.2 No. 187 · ASHRAE 170/241 · LEED eligible
Specifications
| Filter type | Electronic Air Cleaner (EAC), 2″ medical/commercial hybrid |
|---|---|
| Technology | Patent-pending hybrid, EPF + pleated fabric layer |
| Cabinet depth | 2″ |
| MERV options (ASHRAE 52.2) | 14A / 16A |
| Protocol | Appendix J, performance assured power-on/off |
| PM0.1 capture | 74.73% (vs. 49.19% for HEPA), independent lab, controlled conditions |
| Pressure drop (ΔP) | 0.13–0.37 in. w.g. |
| Frame | Robust 2″ solid aluminum (same as Model 2300) |
| Input voltage | 24V |
| Power consumption | 2 W |
| Apparent power | 2 VA |
| Sizes | All industry-standard, oversize, odd & exact sizes |
| Standards | ASHRAE 170/241 · CSA Z317.2 · ASHRAE 52.2 |
| Certifications | ETL · UL2998 Zero Ozone · UL867 · CSA 22.2 No. 187 |
| Zero emissions | Exceeds ASHRAE 170 ozone & formaldehyde limits |
Downloads
Frequently asked questions
Good to knowThe M-Series™ Hybrid 2″ uses a patent-pending pad that combines a MERV 8-equivalent pre-filter with a high-performance MERV 14A or 16A final filter in a single pad. Independent testing shows the Model 2300 M-Series captures 74.73% of PM0.1 particles vs. 49.19% for HEPA, under controlled test conditions. HEPA uses a tight pleated weave to sieve particles mechanically, which creates much higher static pressure drop (0.6–1.2 in. w.g. typical). The M-Series achieves superior PM0.1 performance at a pressure drop of only 0.13–0.37 in. w.g.
Yes. The M-Series™ Hybrid 2″ provides ASHRAE 170.1 / CSA Z317.2 compliant filtration for all hospital treatment areas. The MERV 14A configuration covers emergency, invasive procedure and higher-risk treatment rooms; the MERV 16A configuration covers operating rooms and high-acuity procedural spaces. All M-Series filters are tested and certified to Appendix J protocols, confirming consistent in-situ performance over their entire lifecycle. The product also supports ASHRAE 241 infection risk mitigation strategies.
An independent 12-week study compared an ASHRAE 170-compliant 2-bank system (MERV 8 pre-filter + MERV 14 bag filter) against a single bank of M-Series filters in identical air handlers. The conventional system consumed 12,795 kWh over 12 weeks; the M-Series consumed 5,940 kWh, a 54% reduction. Because the M-Series combines both filter stages into a single pad, the Stage 2 bag filter array can be eliminated entirely, reducing pressure drop and simplifying maintenance.
No. The M-Series™ Hybrid 2″ exceeds ASHRAE 170 emission standards for both ozone and formaldehyde. It is independently certified as compliant with UL2998 (Zero Ozone Standard), UL867, and CSA 22.2 No. 187. The hermetically sealed electronics never produce ions or corona discharge.
All industry-standard and oversize cabinet sizes are supported, plus odd and exact custom sizes on request. The M-Series pad uses the same permanent 2″ aluminum frame as the commercial Model 2300, so existing Model 2300 frames can be upgraded with M-Series pads without replacing the cabinet. Send the cabinet dimensions and our engineers will quote it.
