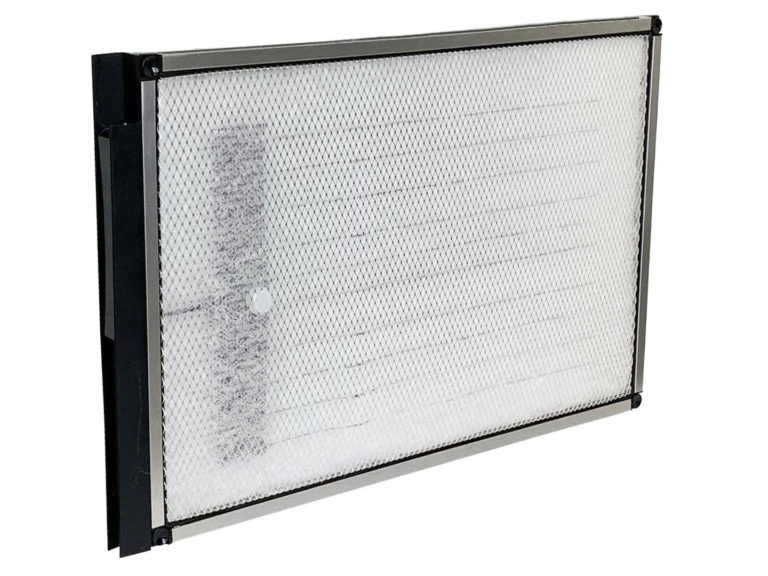

Dynamo™ 1″ E.A.C.
Our best 1″ residential filter, captures down to .001 µm at low pressure drop.
The Dynamo is ECOairflow's flagship 1″ filter. Patented Electronic Polarization Filtration traps airborne contaminants, bacteria, viruses, smoke, dander, pollen and radon-decay particles, at a fraction of the static pressure drop of a comparable pleated filter.
It drops into the slot you already have
The 1″ unit replaces the pleated filter in an existing furnace or fan coil, with a thin 24V lead run to the transformer.
Reserved for further technical or descriptive imagery.
Features
- Captures particles as small as .001 µm, finer than HEPA at the same size
- MERV 13 rated; LEED-compliant materials
- Patented one-piece pad, change in under a minute, no tools
- Up to 15% lower HVAC operating cost from low pressure drop
- Tandem-linkable for larger cabinets and light-commercial use
- Hermetically sealed electronics, 2W consumption, no ozone (UL2998)
Specifications
| Pressure drop | 0.11 in.w.c. @ 300 FPM |
|---|---|
| MERV rating (ASHRAE 52.2) | 13 |
| Input voltage | 24V floating (range 18–30V) |
| Power consumption | 2 W |
| Apparent power | 1.75 VA |
| Recommended maintenance | Every 3 months |
| Sizes | All industry-standard sizes; custom on request |
| Certifications | ETL · UL2998 Zero Ozone · LEED |
Downloads
Frequently asked questions
Good to knowThe Dynamo™ 1″ E.A.C. uses Electronic Polarization Filtration to charge particles, which a special loose-weave pad then attracts. HEPA uses a tight pleated weave to sieve particles mechanically. This works but creates much higher static pressure drop. Independent comparison testing showed EPF capture down to .001 µm, finer than HEPA at the same size, at a fraction of the pressure penalty.
No. Every ECOairflow filter, including the Dynamo™ 1″ E.A.C., is independently certified by ETL as compliant with UL2998, the Zero Ozone Standard. The hermetically sealed electronics never produce ions or corona discharge, and device ozone emission is held below .0005 ppm.
All industry-standard cabinet sizes are supported, and custom sizes are available on request, send the cabinet dimensions and our engineers will quote it. Read more on the Services page.
Goes with the Dynamo
RelatedReplacement Pads
The single consumable. One-piece, drop-in, recyclable, sized for every ECOairflow cabinet.
View Replacement PadsCabinet Conversion Kit
Magnetic adaptor rails that upgrade a 4″ or 5″ wide filter cabinet to take a 1″ or 2″ ECOairflow filter. No tools required.
View Conversion KitReady to spec the Dynamo™ 1″ E.A.C.?
Tell us the cabinet, the airflow, and the certification target. We'll quote it.
