All-in One Filtration

The original center screen style electronic filter. It is energy efficient and effective against dust, pet dander, cigarette smoke, bacteria & viruses.

The ECOairflow  Model 1000 delivers high performance with very low pressure drop. Pressure drop is a measure of the resistance to air flow the filter creates. Low pressure drop results in less energy consumption which means real savings for the homeowner.

How it Works

The ECOairflow Model 1000 operates on the principle of bi-polarization. It creates a polarized charge on the center screen inside the filter. It is a safe and simple process which effectively turns the 1000 into a giant magnet, trapping airborne contaminants like dust, dander and pollen on the pads surrounding the screen.

The Model 1000 is designed to trap even more dangerous particles which can pose serious health risks. These include formaldehyde, viruses, bacteria and many other pathogens.

Features

  • MOISTURE RESISTANT ELECTRONICS
    Draws only 2 watts of power.
  • LOW PRESSURE DROP
    Lowest pressure drop among comparable center screen style 1” air cleaners. This can save you as much as 10% a year in heating and cooling costs over conventional throwaway filters.
  • Affordable price
    Takes just minutes to install and has an extremely low annual maintenance cost
  • Easy open technology
    for simple, user-friendly maintenance.

Low Pressure Drop

All filters restrict air flow. The degree of restriction is measured as “pressure drop” and will determine how long and how hard a fan motor will need to operate to achieve the desired heating or cooling level in your home.

The Model 1000 has a pressure drop rating that is significantly lower than typical throwaway filters. This means that the air flows more easily, reducing heating, air conditioning and electrical costs by up to 10%.

Simple Maintenance

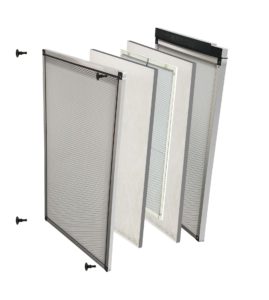

Our patented clam shell design makes it easy to change pads. Just open the filter, carefully remove and discard the old pads and then drop in the new ones. It’s that easy.

The Model 1000 Excels in 4 Main Areas:

  • It effectively traps airborne particles as small as .007 microns in size. Passive (non-powered) filters are not as effective below .3 microns.
  • It allows easy airflow and can save you as much as 10% a year in heating costs over conventional throwaway filters. IT SAVES YOU MONEY!!!
  • It holds a great deal of material, so you don’t have to change the replaceable pads as often. Again, IT SAVES YOU MONEY!!!
  • Its easy open clam shell design makes changing the replacement pads a breeze!!!

Specifications


Rating
Pressure Drop To  0.16 in.w.c. @300 fpm
Normal Input Voltage  24 Volts (floating)
Input Voltage Range 18 V min to 30 V max
Power Consumption  2 watts
Apparent Power2.0 VA
Recommended Maintenance  Every 3 Months
Sizes  All industry standard sizes AND custom sizes
