ASHRAE 52.2 Air Filtration Standards and MERV Ratings

ASHRAE 52.2 determines the Minimum Efficiency Reporting Value (MERV) of an air filter — a standardized rating from 1 to 16 that quantifies how effectively a filter captures airborne particles of specific sizes. It also measures pressure drop across the filter, which directly impacts HVAC system energy consumption. MERV ratings allow engineers, facility managers, and homeowners to objectively compare filter performance across brands and product types.

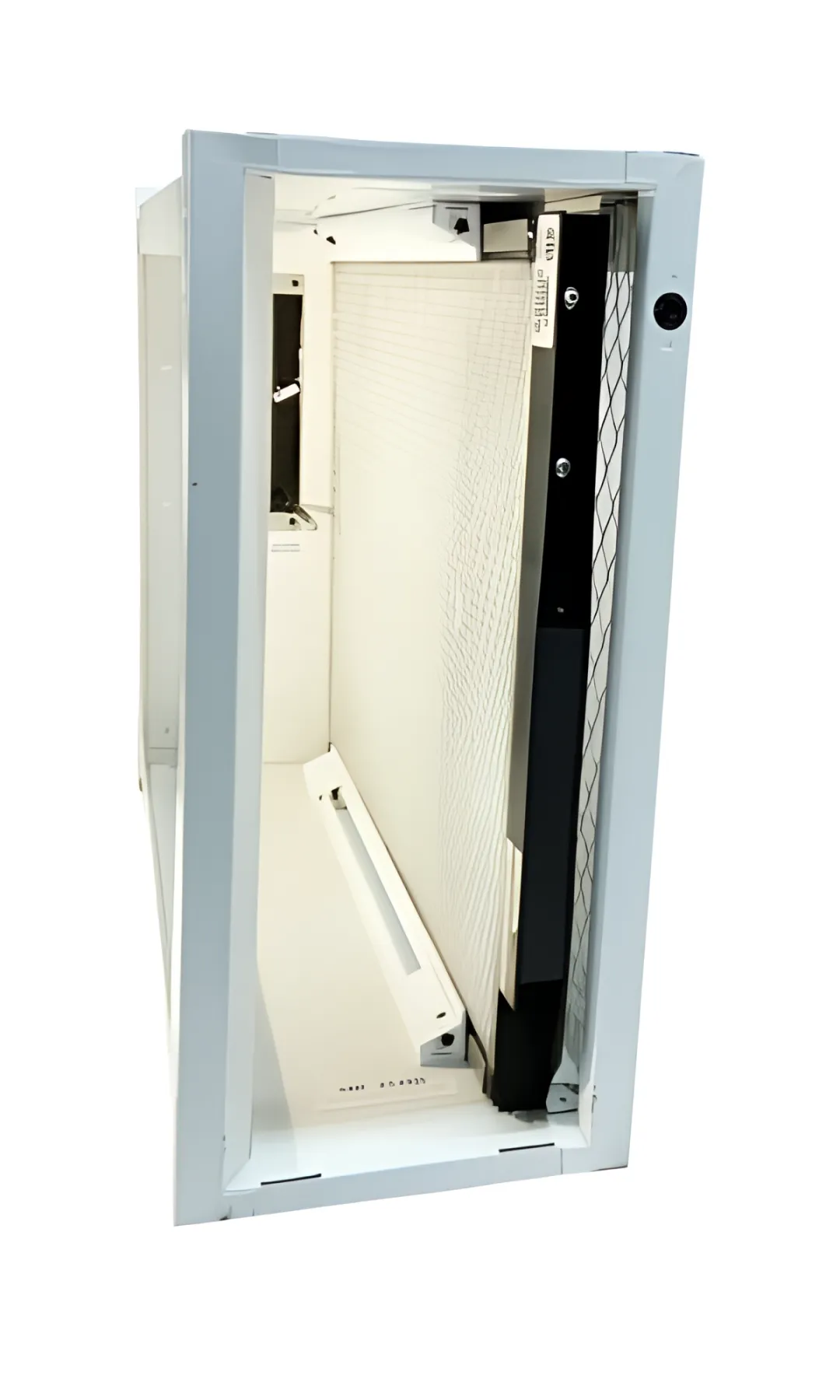

Most residential applications benefit from MERV 11 to MERV 12. ECOairflow's Model 1000 (MERV 11) is ideal for budget-conscious households seeking whole-home filtration, while the Model 1500 and Dynamo 1" EAC (both MERV 12) suit households with allergies, pets, or occupants sensitive to fine particles. Higher MERV ratings are not typically required for standard residential HVAC systems.

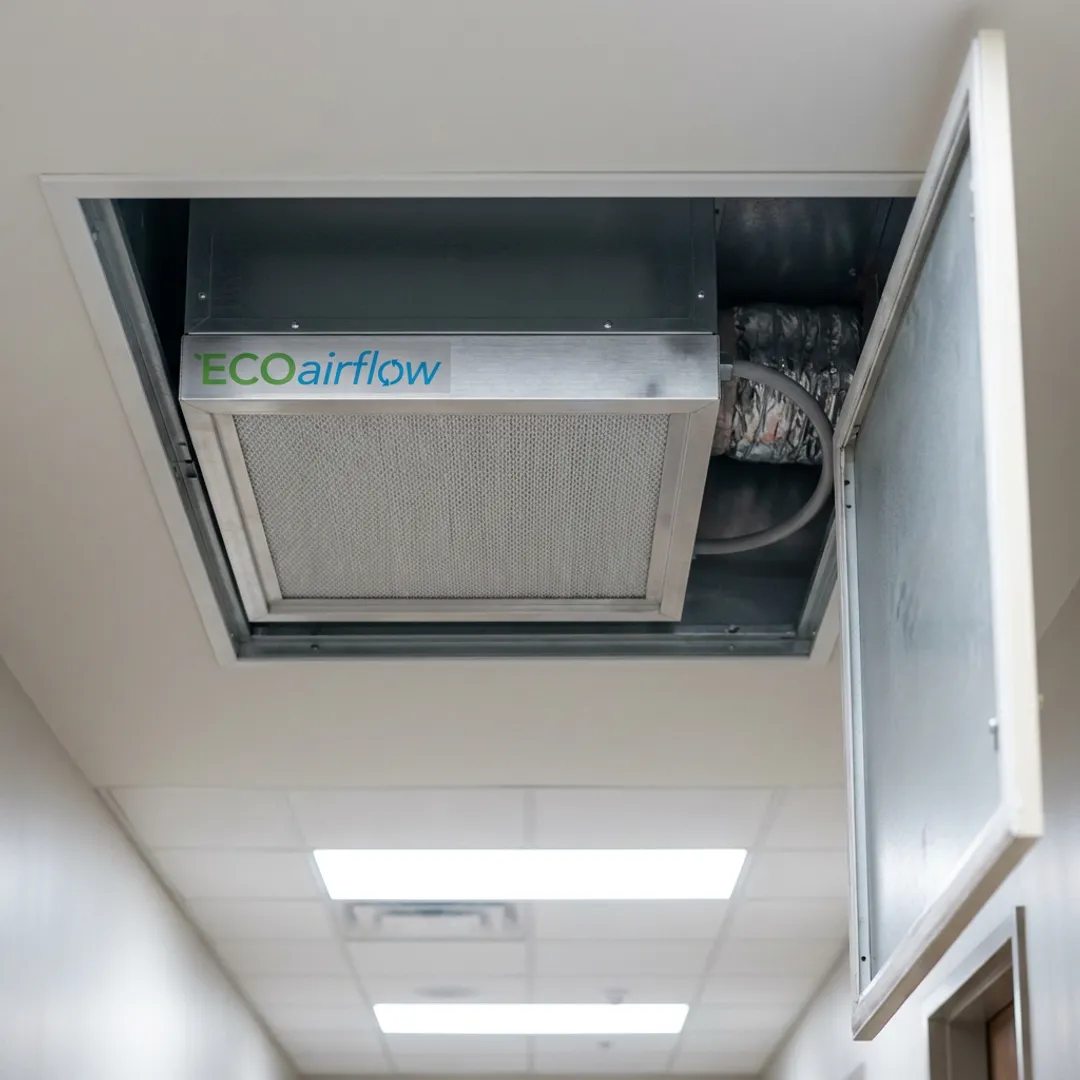

ASHRAE 170 requires MERV 14A for emergency rooms, invasive procedure rooms, and treatment areas, and MERV 16A for operating rooms and high-acuity procedural spaces. ECOairflow's M-Series 2" Hybrid E.A.C. meets these requirements with ASHRAE 52.2 Appendix J certification, maintaining full MERV performance whether powered, unpowered, or under Appendix J conditioning — critical for clinical safety in medical environments.

Appendix J is an ASHRAE 52.2 in-situ performance protocol that verifies a filter's efficiency over its entire service life under real-world installation conditions, not just initial laboratory testing. Filters that are Appendix J certified — such as ECOairflow's M-Series — demonstrate consistent, reliable filtration performance throughout the pad lifecycle, which is essential for hospital procurement, ASHRAE 170 compliance, and any application where filtration consistency is a clinical or regulatory requirement.

Not necessarily. A higher MERV rating indicates finer particle capture but also typically increases pressure drop, raising HVAC fan energy consumption and potentially stressing equipment. ECOairflow's Electronic Polarization Technology achieves MERV 11–16A ratings with significantly lower pressure drops than passive pleated filters of equivalent MERV ratings, delivering superior air quality without the typical energy penalty associated with high-MERV mechanical filters.

MERV ratings correspond directly to particle size capture efficiency. MERV 11 captures particles down to approximately 1 micron; MERV 12–13 targets 0.3–1 micron particles such as bacteria and fine smoke. ECOairflow's EPT technology extends capture well beyond the MERV rating boundary, trapping particles as small as 0.001 microns — including viruses and ultra-fine automotive pollution — across all models from MERV 11 to MERV 16A.
