EAC Filters for Residential and Commercial HVAC Systems
ECOairflow EAC filters use patented Electronic Polarization Technology (EPT) to capture ultrafine particles as small as 0.001 microns — including viruses, bacteria, wildfire smoke, and allergens. Available in residential (MERV 11–12) and commercial/hospital-grade (MERV 13–16) configurations, they deliver superior filtration with ultra-low pressure drop and zero ozone emissions.
Need help finding the right product?
Talk to our product experts for custom solutions.
Our Range of Products
Apply Filters
0.09
0.18
M-Series™ 2" Hybrid E.A.C. — Model 2300 M-Series Hospital-Grade Air Filter (MERV 14A / 16A, ASHRAE 170, Appendix J Certified)
MERV 14A/16A certified for hospital ORs & ERs
54% less fan energy vs traditional filter trains
Captures particles down to 0.001 microns
Dynamo™ 2" E.A.C. — Model 2300 Commercial Electronic Air Cleaner (MERV 14, 50% More Effective than HEPA at PM0.1)
MERV 14 powered, 50% better than HEPA at PM0.1
54% fan energy reduction over 12-week study
Permanent aluminum frame — only pad replacement needed
Dynamo™ 1" E.A.C. — Premium Whole-Home Electronic Air Cleaner for Residential HVAC (MERV 12, Lifetime Electronics Warranty, 2x More Effective than HEPA at Ultra-Fine Particles)
Lowest residential pressure drop: 0.11 in.w.c.
Lifetime electronics warranty to original owner
2x more effective than HEPA at PM0.1 particles
Model 1000 — Affordable Whole-Home Electronic Air Cleaner for Residential HVAC (MERV 11, Captures Down to 0.001 Microns)
MERV 11 EPT captures particles to 0.001 microns
ETL UL 2998 Zero Ozone Verified — CARB compliant
Tool-free pad swap — no service call required
Model 1500 — Whole-Home Electronic Air Cleaner for Residential HVAC (MERV 12, Captures Particles Down to 0.007 Microns)
MERV 12 whole-home filtration at 0.13 in.w.c.
Saves up to 15% yearly in HVAC energy costs
Captures viruses & smoke down to 0.007 microns
Frequently Asked Questions
What is an EAC filter?
An EAC (Electronic Air Cleaner) filter uses an electrically charged field to attract and capture airborne particles. Unlike passive pleated filters that rely on mechanical blocking, EAC filters like ECOairflow's EPT-based models capture ultrafine particles as small as 0.001 microns — including viruses, bacteria, wildfire smoke, and allergens — with significantly lower airflow resistance.
What is the difference between EAC filter and ESP filter?
Both use electrical charge to capture particles, but ESP (Electrostatic Precipitator) filters typically use collector plates that require washing and can produce more ozone. EAC filters like ECOairflow's use polarized glass-fiber pads — replaceable media that avoids ozone generation, requires no washing, and maintains consistent performance throughout the pad lifecycle without the maintenance burden of plate cleaning.
What is EAC in HVAC?
In HVAC, EAC stands for Electronic Air Cleaner — a powered filtration device installed in a forced-air system's air handler or furnace cabinet. It uses an electrical field to charge and capture airborne particles far smaller than standard pleated filters can intercept. ECOairflow EAC units connect to the HVAC system's existing 24V source and require no separate power supply.
How to clean an EAC filter?
ECOairflow EAC filters do not require cleaning — they use replaceable glass-fiber media pads. Simply open the filter housing, remove the old pad, and drop in a new one. No tools, washing, or HVAC service call is needed. Pads should be replaced approximately every 3 months, and ECOairflow offers an email reminder service to help you stay on schedule.
What MERV ratings are available for ECOairflow EAC filters?
ECOairflow offers EAC filters from MERV 11 to MERV 16. Residential models (Model 1000, Model 1500, Dynamo 1") are rated MERV 11 or 12. Commercial models (Dynamo 2" Model 2300) are MERV 14. The hospital-grade M-Series Hybrid supports MERV 13, 14, 15, or 16 and is ASHRAE 52.2 Appendix J certified — maintaining full rated MERV performance powered, unpowered, or under Appendix J conditioning.
Are ECOairflow EAC filters safe — do they produce ozone?
Yes, all ECOairflow EAC filters are ETL certified to the UL 2998 Zero Ozone Verification standard, emitting below 0.0005 ppm (5 ppb) of ozone. This exceeds US EPA, FDA, NIOSH, OSHA, and California CARB ozone emission standards and is recommended by the US CDC and EPA as safe for all occupied spaces including homes, hospitals, and schools.
Can ECOairflow EAC filters replace my existing electronic air cleaner?
In most cases, yes. ECOairflow residential EAC filters are available in all industry-standard furnace cabinet sizes plus custom sizes, making them compatible with systems previously using Honeywell, AprilAire, Lennox, Trane CleanEffects, Carrier Infinity, and GeneralAire units. Commercial Model 2300 units include Cabinet Conversion Kit availability for legacy EAC replacement installations. Contact ECOairflow to confirm compatibility with your specific system.
Didn't find what you're looking for?
Talk to our experts for custom solutions and tailored guidance.
Industries We Serve

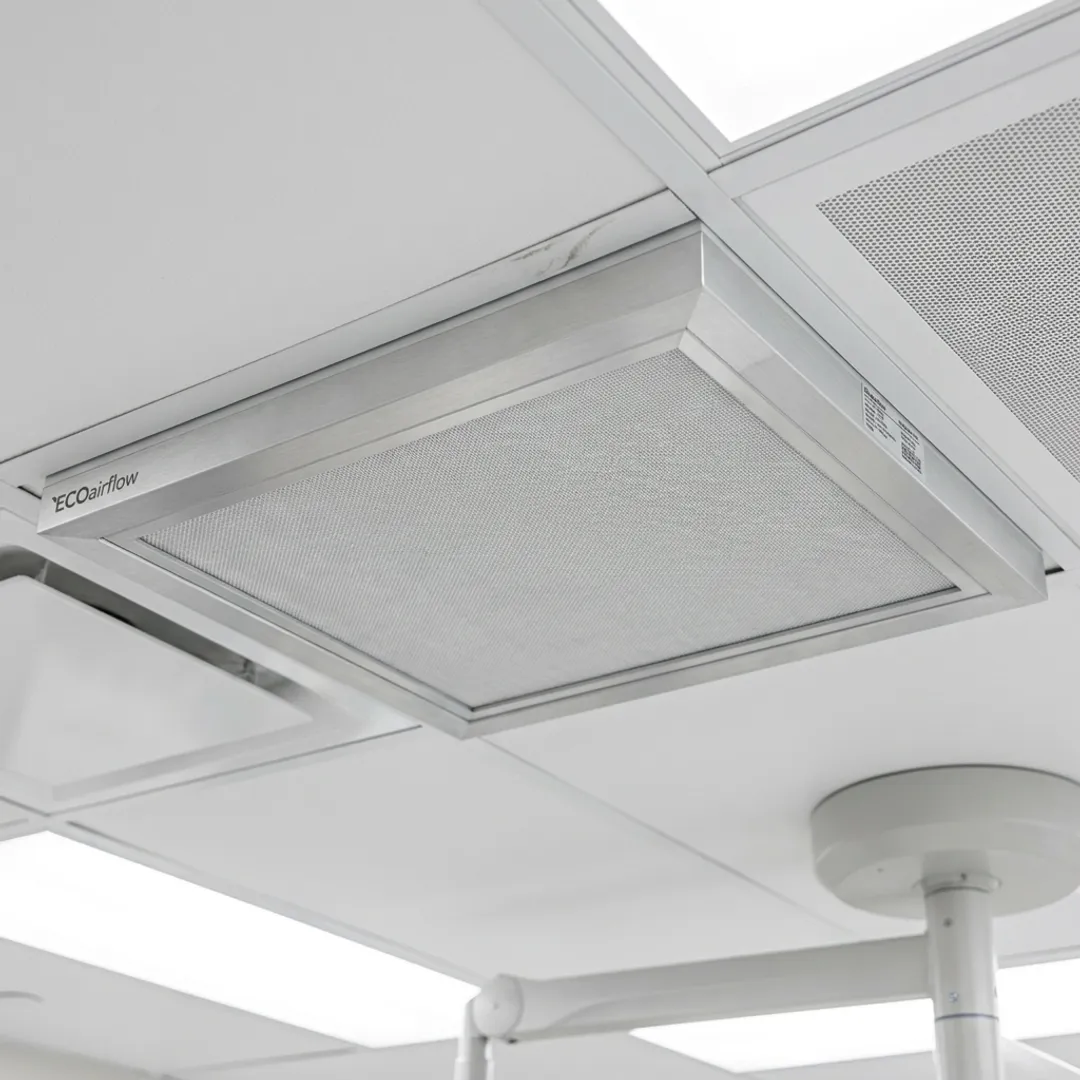

Hospitals & Healthcare Facilities
ASHRAE 170/241-compliant MERV 14A–16A filtration for ORs, ERs, and high-acuity procedural spaces with 54% documented fan energy reduction.

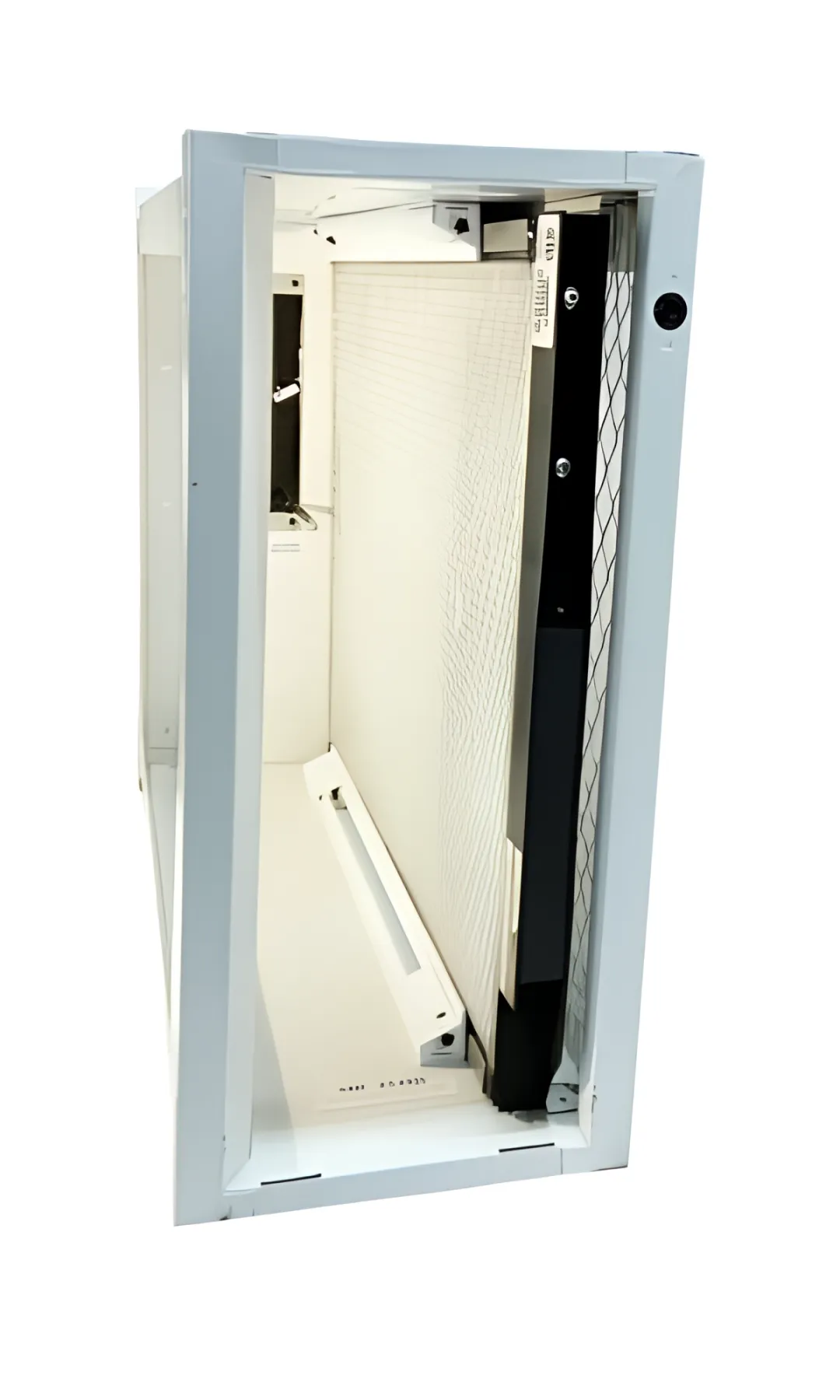

Residential Homes
Whole-home MERV 11–12 EAC filtration capturing allergens, wildfire smoke, viruses, and radon progeny with up to 15% energy savings annually.

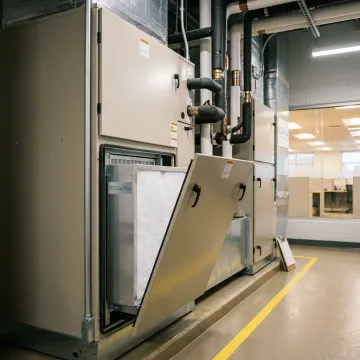

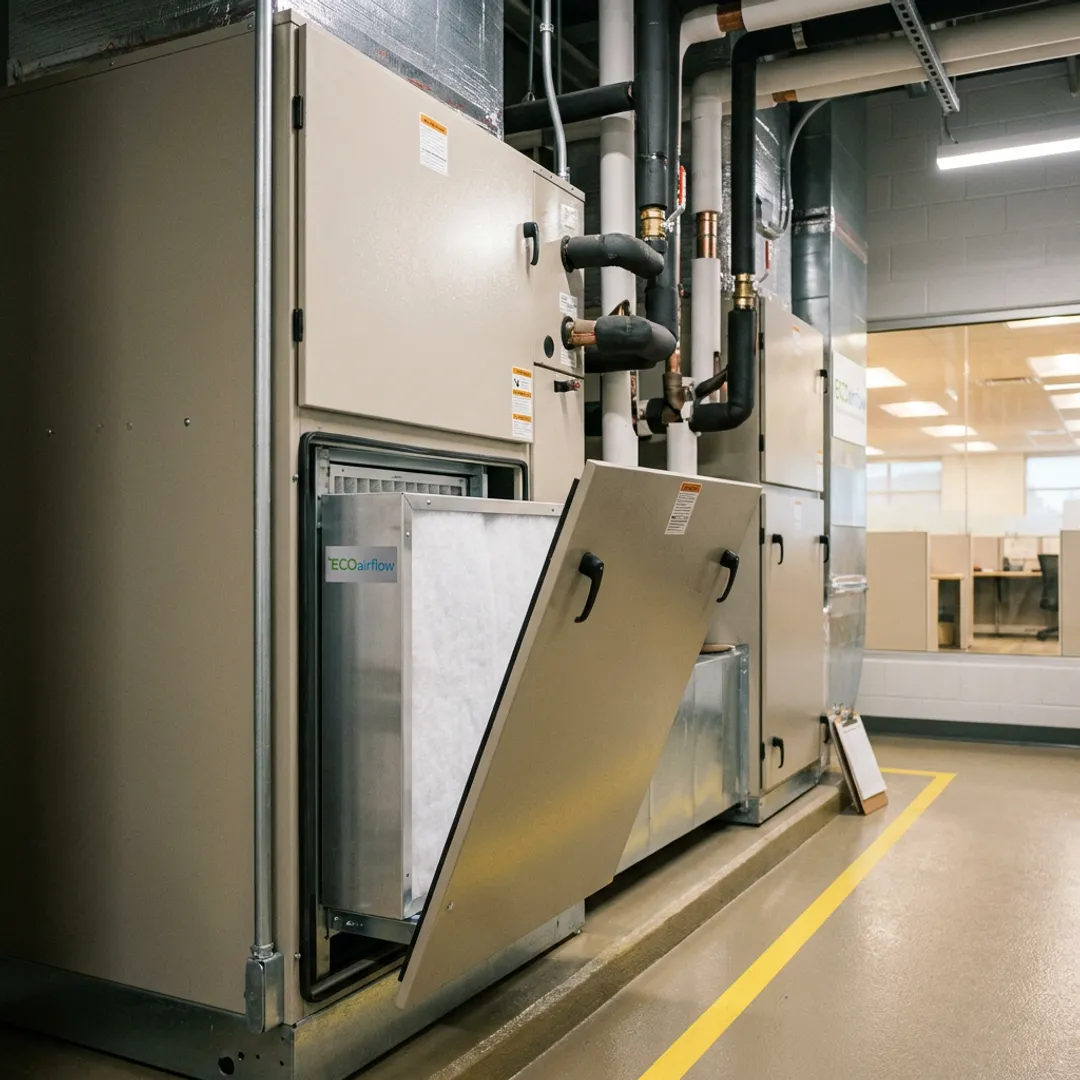

Commercial Office Buildings
MERV 13–14 rated EAC filters supporting ASHRAE 62.1, LEED EQ credits, and ASHRAE 90.1 fan power compliance in commercial air handlers.

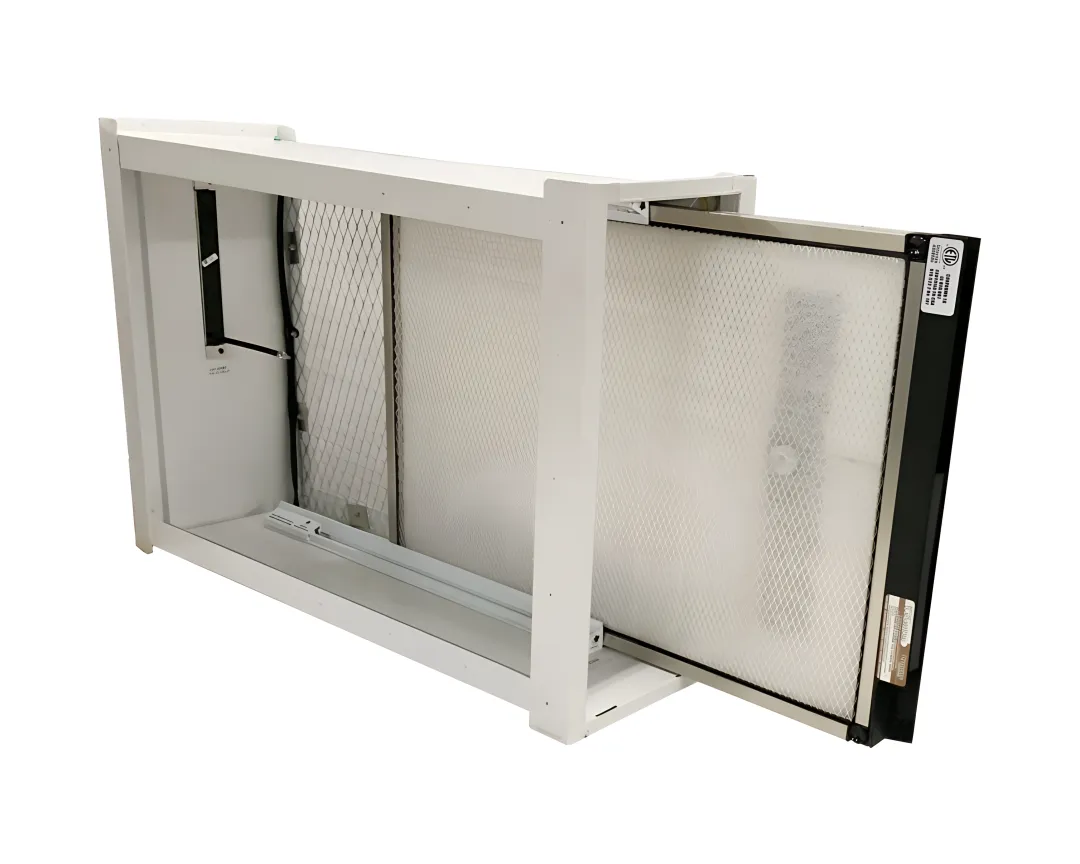

Schools & Universities
High-performance MERV 13–14 EAC filtration for classrooms and facilities to reduce infection risk and improve cognitive performance in students.
Didn't find what you're looking for?
Talk to our experts for custom solutions and tailored guidance.
ECOairflow's Electronic Polarization Technology captures particles as small as 0.001 microns — including viruses, wildfire smoke, and radon daughter progeny — outperforming traditional HEPA and pleated filters.
Ultra-Low Pressure Drop Saves Energy
ECOairflow EAC filters maintain pressure drops as low as 0.11 in.w.c., reducing HVAC fan energy costs by up to 15% annually compared to conventional disposable high-MERV pleated filters.
Zero Ozone — ETL Certified Safe
All ECOairflow filters are ETL certified to UL 2998 Zero Ozone standards, emitting below 0.0005 ppm — exceeding EPA, FDA, CARB, and OSHA ozone safety requirements for occupied spaces.
Get Expert Help Selecting the Right EAC Filter
Submit your details and an ECOairflow specialist will respond within one business day with product recommendations and pricing tailored to your HVAC system.
